Working in the Cultural Heritage Digitization Lab

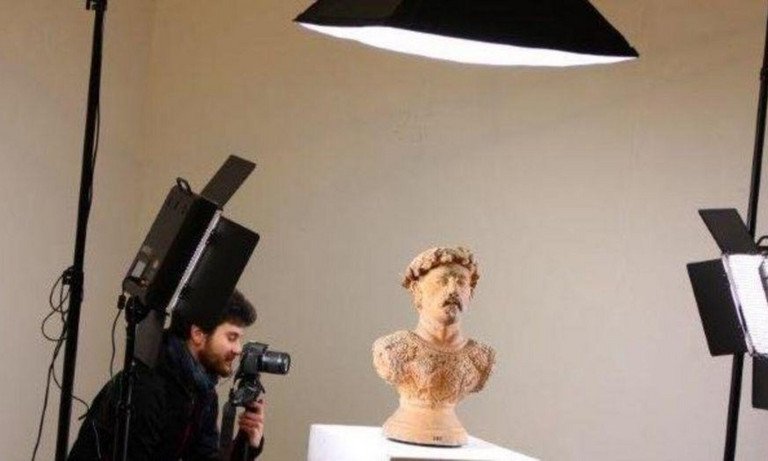

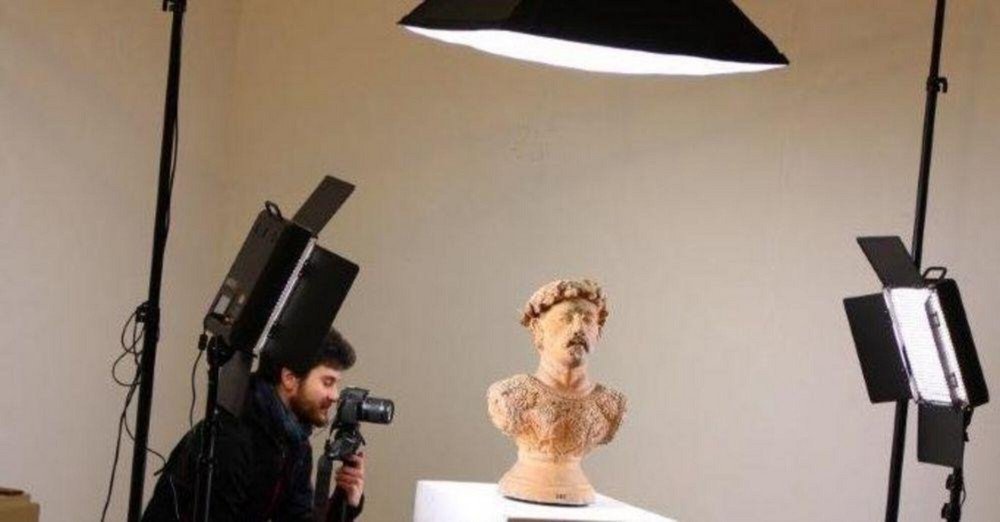

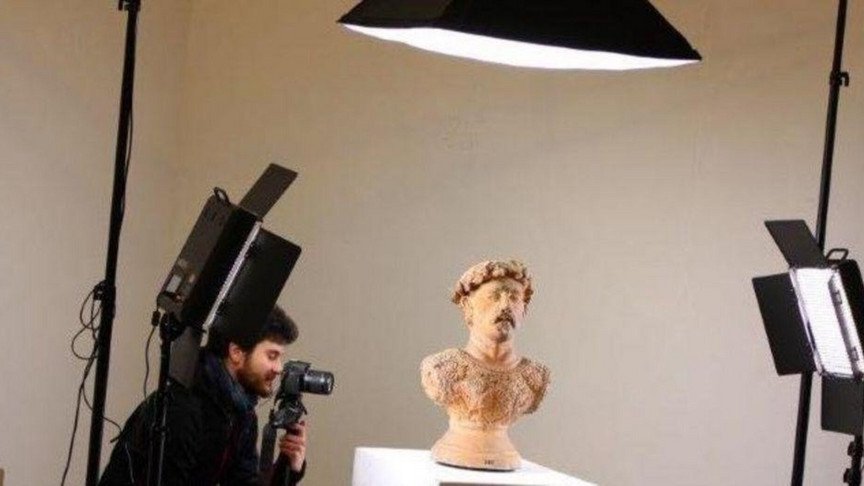

Camera Positions for the Photogrammetry of a Bust

The laboratory is operated at the University of Passau and is run by the Chair of Digital Humanities. It sees itself as a scientific development, experimentation and project space for the digitization and digital valorisation of cultural heritage and as an interface between research, teaching and practice.

Possibilities:

Digitization of cultural artefacts from 3 mm up to 1.5 m
- in 3D: photogrammetry, laser scan, strip light scan
- in 2.5D: Reflectance Transformation Imaging (enhancement of the surface structure)
- in 2D: photography; book scan, multispectral
Digitization of texts
- Text recognition
- Text coding
- Analysis and visualisation of semi-structured and structured data
- Web publishing
Digitization of monuments outside the laboratory with cameras and drone

Equipment

The lab stations can be used at the Windows computer workstations on site.

The image can only be displayed if an alternative text (‘alt’ attribute) is stored. Please add a short description of the image content. This measure serves to ensure accessibility in accordance with legal requirements (e.g. BITV, WCAG) and enables people with visual impairments to access visual information.

The digitization of objects using digital photography is a frequently used process, particularly in archives and museums.

A high-resolution digital SLR camera (Canon EOS 6D 50 MP) and LED lights from the field of studio photography are installed in the lab. Further equipment (e.g. grey and colour cards) is available.

The image can only be displayed if an alternative text (‘alt’ attribute) is stored. Please add a short description of the image content. This measure serves to ensure accessibility in accordance with legal requirements (e.g. BITV, WCAG) and enables people with visual impairments to access visual information.

A wide range of equipment is available for photographic work, enabling the realisation of demanding projects in both stationary and mobile settings:

Cameras: Canon EOS 100 D, Canon EOS 6D, Canon EOS 5DS R (Canon lenses: 50mm, 100mm, 18mm); Nikon D3300 (Nikon lens 18-55mm)
Accessories: tripods, 6 Walimex spotlights (daylight LEDs, dimmable) with diffuser bonnets, pop-up light cube (75x75x75cm), various backgrounds (cardboard, fabrics in blue and green), shooting table, LED surface lamps

The image can only be displayed if an alternative text (‘alt’ attribute) is stored. Please add a short description of the image content. This measure serves to ensure accessibility in accordance with legal requirements (e.g. BITV, WCAG) and enables people with visual impairments to access visual information.

The photogrammetry method enables the creation of three-dimensional object digitizations using the medium of photography. Serial images are calculated into point clouds or triangular meshes using Agisoft software, which are combined with the photographed surface texture. The result is a digital representation of the object as a 3D model.

The image can only be displayed if an alternative text (‘alt’ attribute) is stored. Please add a short description of the image content. This measure serves to ensure accessibility in accordance with legal requirements (e.g. BITV, WCAG) and enables people with visual impairments to access visual information.

The DJI Mavic Air 2 has a camera with video (4K) and photo (12/48MP) function, a take-off weight of 570 g and a maximum flight time of 30 minutes, three-axis stabilisation, obstacle avoidance in 3 directions and is therefore particularly suitable for use in the field for photo and video recordings of larger monuments.

The virtual reality headset with two touch controllers and inside-out tracking with LCD panel (2560x1440 pixels) is suitable for use in visualising computer simulations, virtual rooms, 3D models or 360-degree videos. The software supplied is suitable as an interface for configuring your own VR rooms.

The image can only be displayed if an alternative text (‘alt’ attribute) is stored. Please add a short description of the image content. This measure serves to ensure accessibility in accordance with legal requirements (e.g. BITV, WCAG) and enables people with visual impairments to access visual information.

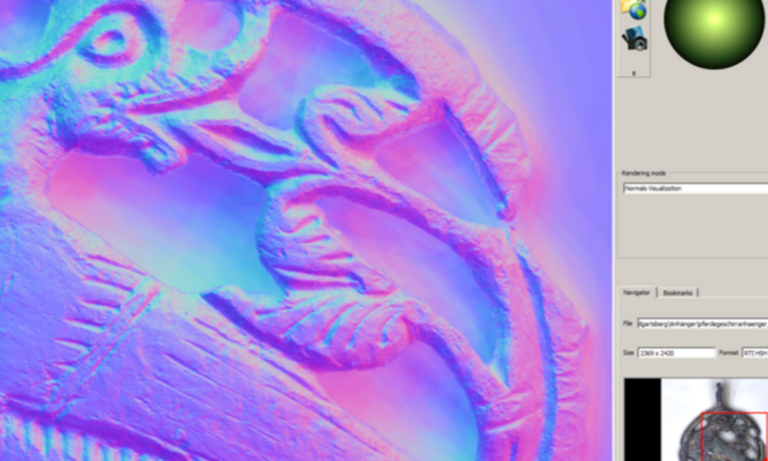

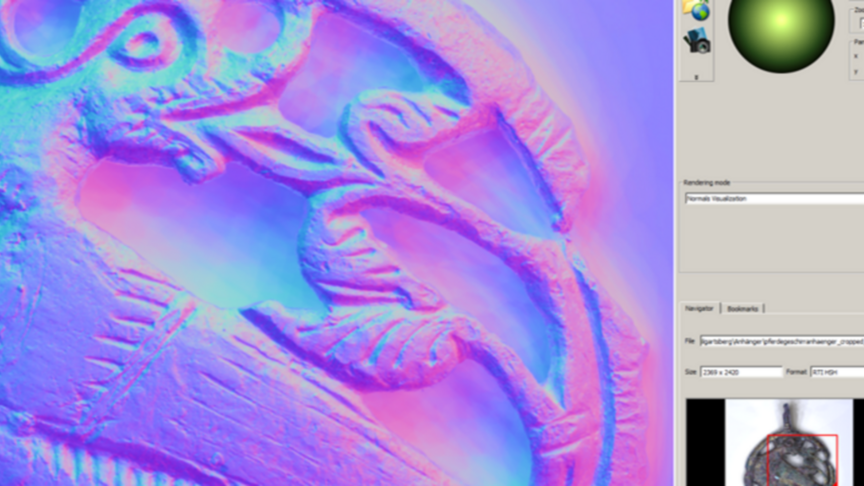

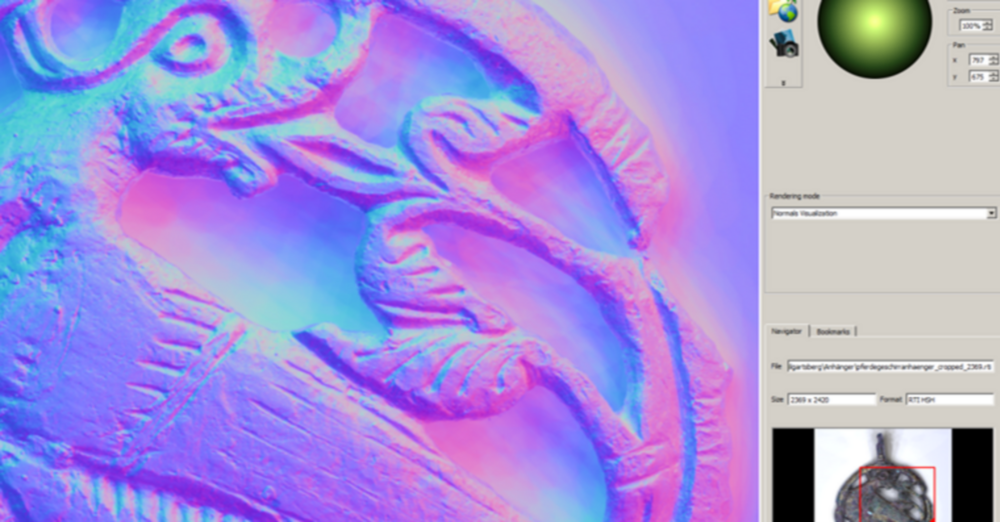

Reflectance Transforming Imaging is suitable for flat objects with a relief structure - coins, for example. The RTI method enables an optically exaggerated reproduction of the surface texture, whereby object details are emphasised plastically and thus become easier to read. Work is carried out with a fixed camera position, but with variable incidence of light. The surface is reconstructed using software based on the reflections and the photographically captured texture.

Available are

self-built RTI dome (for explanation: visit.uni-passau.de/de/buildings/ueber-das-projekt/digitalisierung/ueber-das-projekt/digitalisierung/rti-dome)

RTI freehand

The image can only be displayed if an alternative text (‘alt’ attribute) is stored. Please add a short description of the image content. This measure serves to ensure accessibility in accordance with legal requirements (e.g. BITV, WCAG) and enables people with visual impairments to access visual information.

The MSI process can be used to make artefacts hidden beneath the surface of a text or image medium visible (palimpsestic texts, underpaintings, etc.). The device is only available to a defined group of users after special training.

The image can only be displayed if an alternative text (‘alt’ attribute) is stored. Please add a short description of the image content. This measure serves to ensure accessibility in accordance with legal requirements (e.g. BITV, WCAG) and enables people with visual impairments to access visual information.

The David is particularly suitable for recording the surface properties of smaller objects (30-500mm). Methodically, a light stripe pattern is projected onto the object to be inspected, whereby two industrial cameras mounted in parallel record the projected pattern. The software recognises the distorted stripe pattern from the camera perspective and calculates the surface quality based on the distortions. Several of these images provide a complete description of the surface.

The image can only be displayed if an alternative text (‘alt’ attribute) is stored. Please add a short description of the image content. This measure serves to ensure accessibility in accordance with legal requirements (e.g. BITV, WCAG) and enables people with visual impairments to access visual information.

The high-resolution hand-held scanner is used professionally in the fields of industry, medicine and heritage conservation. In the digitisation of cultural assets, it is particularly suitable for scanning very small immobile objects (with a point accuracy of 0.05 mm) in the field of architecture and in museums, but it can also be used for scanning in studio situations. The software supplied with the device enables a closed work chain in the digitization process.

[Translate to Englisch:] OCR-Software im Labor für Kulturgutdigitalisierung

Optical Character Recognition (OCR) is an automatic text recognition process that is used to transform texts and documents that are available in digital image formats into computer-readable characters. This enables digital searches, processing and annotation of texts. At the chair, we use OCR technology depending on the project requirements, for example with the help of tesseract, calamari and, as an equivalent for handwritten texts, handwritten text recognition (HTR) with Transkribus.

The image can only be displayed if an alternative text (‘alt’ attribute) is stored. Please add a short description of the image content. This measure serves to ensure accessibility in accordance with legal requirements (e.g. BITV, WCAG) and enables people with visual impairments to access visual information.

The Omeka content management system, which specialises in the quick and easy creation of online exhibitions, is software that is used for the professional publication of results from digitization processes. The system offers numerous expansion options for eHumanities projects, including the Neatline module for creating narrative presentations including texts, objects, maps and a timeline. Omeka with Neatline was used, for example, in the chair's field research project on the First World War.

Usage

Please read the Terms of Use.
Acceptance of these terms is required before booking any workstations in the lab.

Terms of Use (PDF)
